3D printing projects

Some 3D printing projects from NE Model Works

DL-109 Winterization Hatches

Shapeways Render
  • Scales:  HO, S
  • Based on the Overland brass DL-109 shell hatches
  • Designed to fit HO Proto 1000 DL-109
  • Designed to fit S American Hi Rail DL-109
  • Updated so the fans do not need to be removed
  • HO scale hatches have been developed for printing on an mSLA resin printer
  • HO scale hatches may be purchased for $15 for a pair plus $5 USPS First Class shipping. Combined shipping offered. Please Contact me to order.
  • S scale hatches may be purchased from my Shapeways Shop

Rt 15 Wethersfield Bridge Steel

Shapeways Render
  • Custom Designed for Chris Adams’ Valley Line
  • Scale:  HO
  • Based on prototype photos
  • Designed to fit under Rix 100′ Highway Bridge
  • Used as masters for resin casting multiple sets
  • May be purchased from my Shapeways Shop

New Haven Alco Switcher Low Profile Cabs

Proto 2000 S1 cab
Atlas S2 cab
  • Scale:  HO
  • Designed from drawings and photos in NHRHTA Shoreliner Vol. 35 No. 1 and other photos
  • Two versions designed to fit HO Proto 2000 S1 and HO Atlas Master Line S2
  • Five piece versions may be purchased from my Shapeways Shop
  • One piece versions have been developed for printing on an mSLA resin printer.
  • One piece cabs may be purchased for $35 each plus $6 USPS First Class shipping. Combined shipping offered. Please Contact me to order.
  • I do have these parts that fit both the Shapeways and resin printed cabs available for purchase. Contact me to order.
  •  A set of .010 clear styrene Cricut cut windows  $5
  • A clear MV lens to fit the rear light housing        $4
  • Custom Finishing 103 whistle                                 $7
  • Micro LED to light the lens w/ resistor                  $4

Alco S1 Switcher Narrow Radiator Shutters

Alco S1 Narrow Shutters (left)
  • Scale:  HO
  • Designed by request for Bill Chapin
  • Printed on my mSLA printer
  • Replaces stock shutters with the correct narrow shutters for New Haven 0931-0970
  • Designed to fit the Proto 2000 Alco S1
  • Price: $15 for a pair of shutters plus $6 USPS First Class shipping. Combined shipping offered.
  • Contact me with any questions or to order

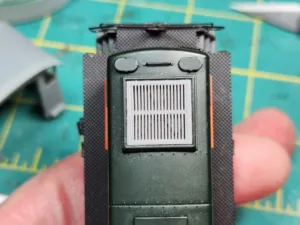

Improved Alco S1 Switcher Fan Grate

Improved Alco S1 Switcher Fan Grate
  • Scale:  HO
  • Designed by request for Randy Hammill
  • Printed on my mSLA printer
  • Replaces the stock fan grate on the Proto 2000 Alco S1 switcher with a more prototypical appearing grate that allows sounds out of the top of the shell if the solid fan is removed.
  • Price: $3 each plus $6 USPS First Class shipping. Combined shipping offered.
  • Contact me with any questions or to order.

Pagnoni Press Flatcar Load

3D printed flatcar load
Pagnoni Press 3D Model
Model Press on Flatcar
  • Scale:  HO
  • Designed by request from photos provided by Richard Townsend.
  • Printed on my mSLA printer
  •  The lettering on the side may be customized
  • If necessary powdered tungsten may be added through the drain holes on the bottom to add weight.
  • Parts are printed to order
  • Price: $25 plus $6 USPS First Class  shipping. Combined shipping offered.
  • Contact me with any questions or to order.
